CNC laser cutting is a foundational technology in modern manufacturing, enabling high-precision material processing at scales and tolerances that are impractical with manual or mechanical methods. By combining computer numerical control (CNC) with focused laser energy, manufacturers can produce complex geometries, tight tolerances, and consistent results across high-volume production runs.
As industries demand faster throughput, lower waste, and higher dimensional accuracy, CNC laser cutting has moved from a specialized capability to a core manufacturing process. This article explains how CNC laser cutting works, examines the major machine types and materials involved, and evaluates why the technology has become indispensable across multiple industries.
1. What Is CNC Laser Cutting?

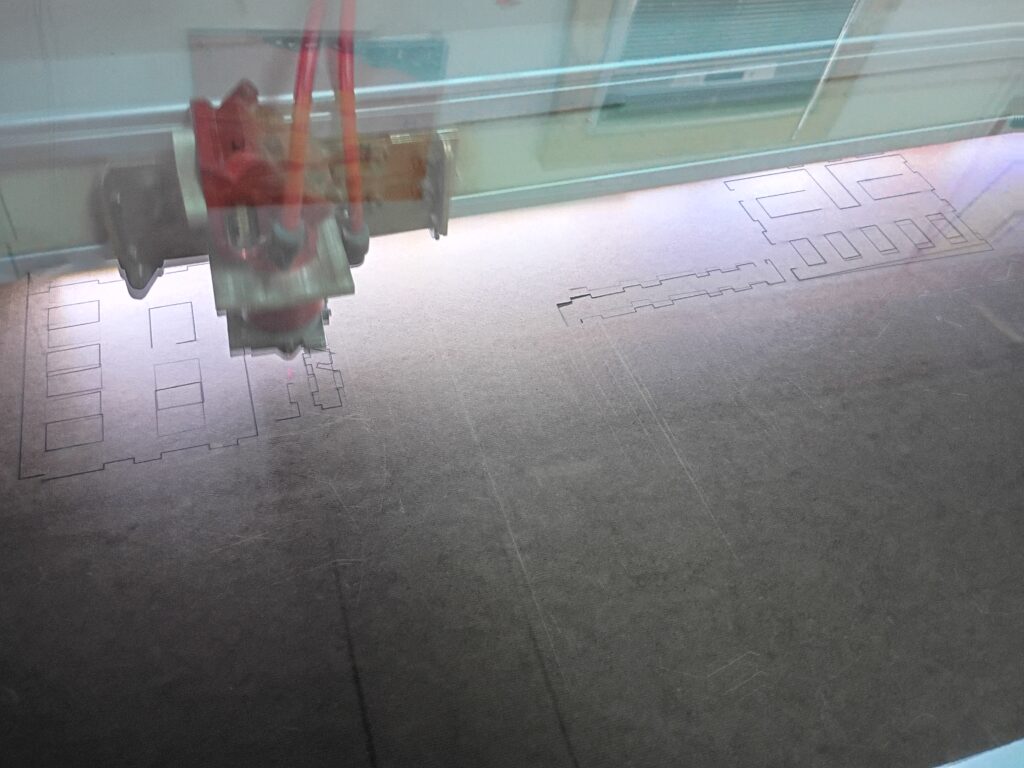

CNC laser cutting is a non-contact, thermally driven cutting process in which a computer-controlled laser beam is used to cut, engrave, or etch materials. The CNC system precisely directs the laser along programmed toolpaths derived from digital design files.
Unlike mechanical cutting, which relies on physical force and tool wear, laser cutting removes material by melting, vaporizing, or burning it at the focal point. This enables:
- Extremely fine feature resolution
- High repeatability across parts
- Minimal mechanical stress on the workpiece
- Clean edges with limited post-processing
Because the cutting action is controlled entirely by software, complex shapes, internal cutouts, and tight tolerances can be produced reliably at scale.
2. Core Components of a CNC Laser Cutting System
A CNC laser cutter is an integrated system in which several subsystems operate in coordination:
Laser Source
The laser source generates the cutting beam. Common types include CO₂, fiber, and crystal (solid-state) lasers, each optimized for different materials and applications.
Cutting Head
The cutting head focuses the laser beam onto the workpiece through a lens system and directs assist gases through a nozzle to improve cut quality and remove molten material.
CNC Controller
The controller interprets machine code (G-code or equivalent) and synchronizes laser firing, motion, speed, and power levels.
Motion System
Servo or stepper motors drive linear axes (typically X, Y, and sometimes Z), ensuring accurate positioning and smooth toolpath execution.
Cutting Bed
The bed supports the workpiece and is often designed to minimize back-reflection, material warping, and debris accumulation.
Cooling System
High-power lasers generate substantial heat. Water chillers and thermal management systems prevent damage to the laser source and optics.
Gas and Exhaust Systems
Assist gases (such as oxygen, nitrogen, or air) influence cut speed and edge quality, while exhaust systems remove smoke and particulates.
3. The CNC Laser Cutting Workflow
The cutting process follows a predictable and highly automated sequence:
- Design Creation
Parts are designed using CAD software with attention to material thickness, tolerances, and cut geometry. - CAM Processing
Designs are translated into machine instructions that define toolpaths, laser power, speed, and assist gas settings. - Machine Setup
Operators configure material parameters, focal height, and cutting conditions appropriate to the selected material. - Cut Execution
The CNC system guides the laser along the programmed path, cutting with high precision and repeatability. - Cooling and Material Stabilization
Heat-affected zones are minimized through controlled energy delivery and cooling. - Inspection and Quality Control
Finished parts are inspected for dimensional accuracy, edge quality, and surface finish.
4. Types of CNC Laser Cutting Machines
CNC laser cutters are primarily categorized by the laser medium they use.
CO₂ Laser Cutters
CO₂ lasers operate at a wavelength of 10.6 µm and are particularly effective for non-metallic materials such as wood, acrylic, rubber, fabrics, and paper. They also perform well on thicker non-metal stock and produce smooth edge finishes.
Limitations include lower efficiency when cutting reflective metals and higher maintenance requirements compared to newer technologies.
Fiber Laser Cutters
Fiber lasers emit at approximately 1.06 µm, a wavelength that metals absorb efficiently. As a result, fiber lasers dominate modern metal fabrication.
Key advantages include:
- Very high cutting speeds
- Excellent performance on reflective metals
- Lower electrical consumption
- Reduced maintenance due to solid-state design
- Superior beam quality for fine features
Crystal (Solid-State) Laser Cutters
Crystal lasers, such as Nd:YAG and Nd:YVO₄ systems, bridge the gap between CO₂ and fiber lasers. They provide high beam intensity and precision, making them suitable for thin metals, fine engraving, and micro-machining.
Their shorter operational lifespans and higher cost have limited widespread adoption compared to fiber lasers.
5. Materials and Industrial Applications
Commonly Processed Materials
CNC laser cutting supports a broad material range, including:
- Metals: Carbon steel, stainless steel, aluminum, copper
- Wood Products: Hardwood, plywood, MDF
- Plastics: Acrylic, polycarbonate, ABS
- Textiles: Cotton, polyester, nylon
- Other Materials: Rubber, paper, cardboard
Material thickness, reflectivity, and thermal conductivity directly influence cutting parameters and achievable tolerances.
Key Industry Applications
- Automotive Manufacturing: Structural components, brackets, interior elements
- Medical Devices: Precision-cut surgical tools and implants
- Consumer Products: Electronics enclosures, decorative panels
- Music Instruments: Guitar bodies, fretboards, and inlays
- Aerospace and Industrial Fabrication: Lightweight, high-tolerance components
6. Design Considerations for CNC Laser Cutting
Effective laser-cut designs account for manufacturing constraints:
- Material thickness typically ranges from 1–10 mm for flat parts
- Minimum hole diameters should be no less than 50% of material thickness
- Edge spacing should be at least one material thickness
- Bend radii should match or exceed material thickness
- Preferred file formats include DXF and DWG for 2D cutting
Ignoring these constraints increases the risk of warping, poor edge quality, or part rejection.
